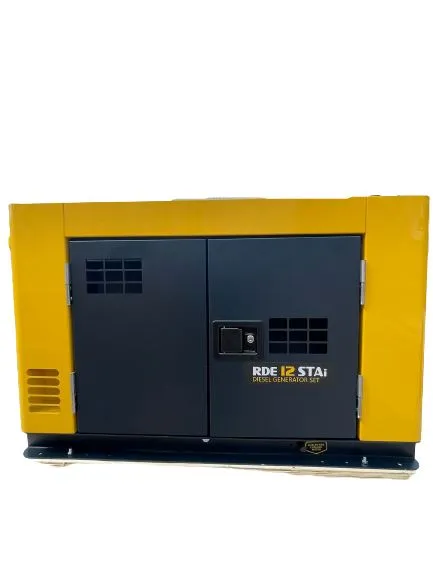

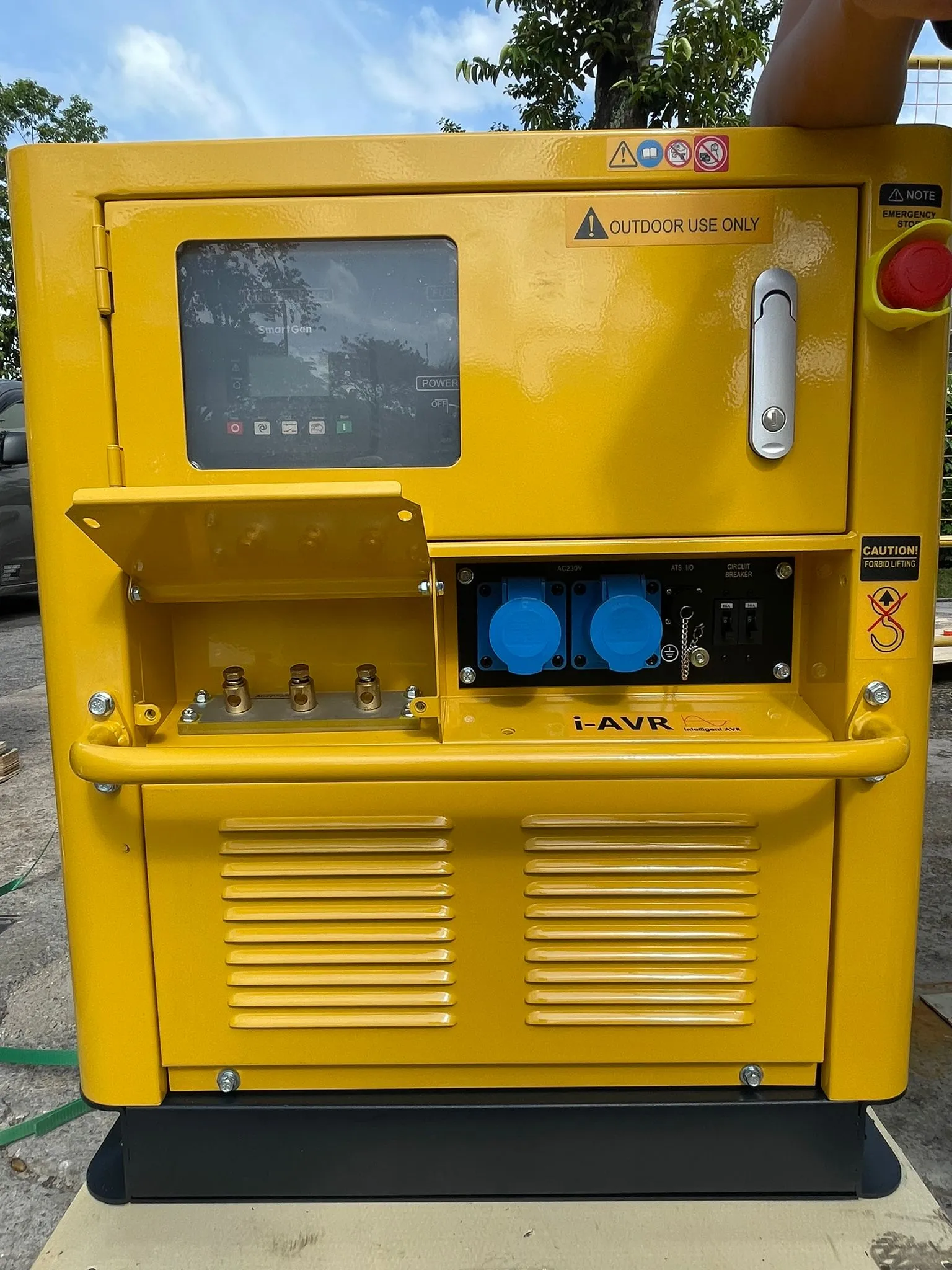

Aiko 8.5kva 240V 50hz 4-stroke Diesel Generator | Model : RDE12STAI

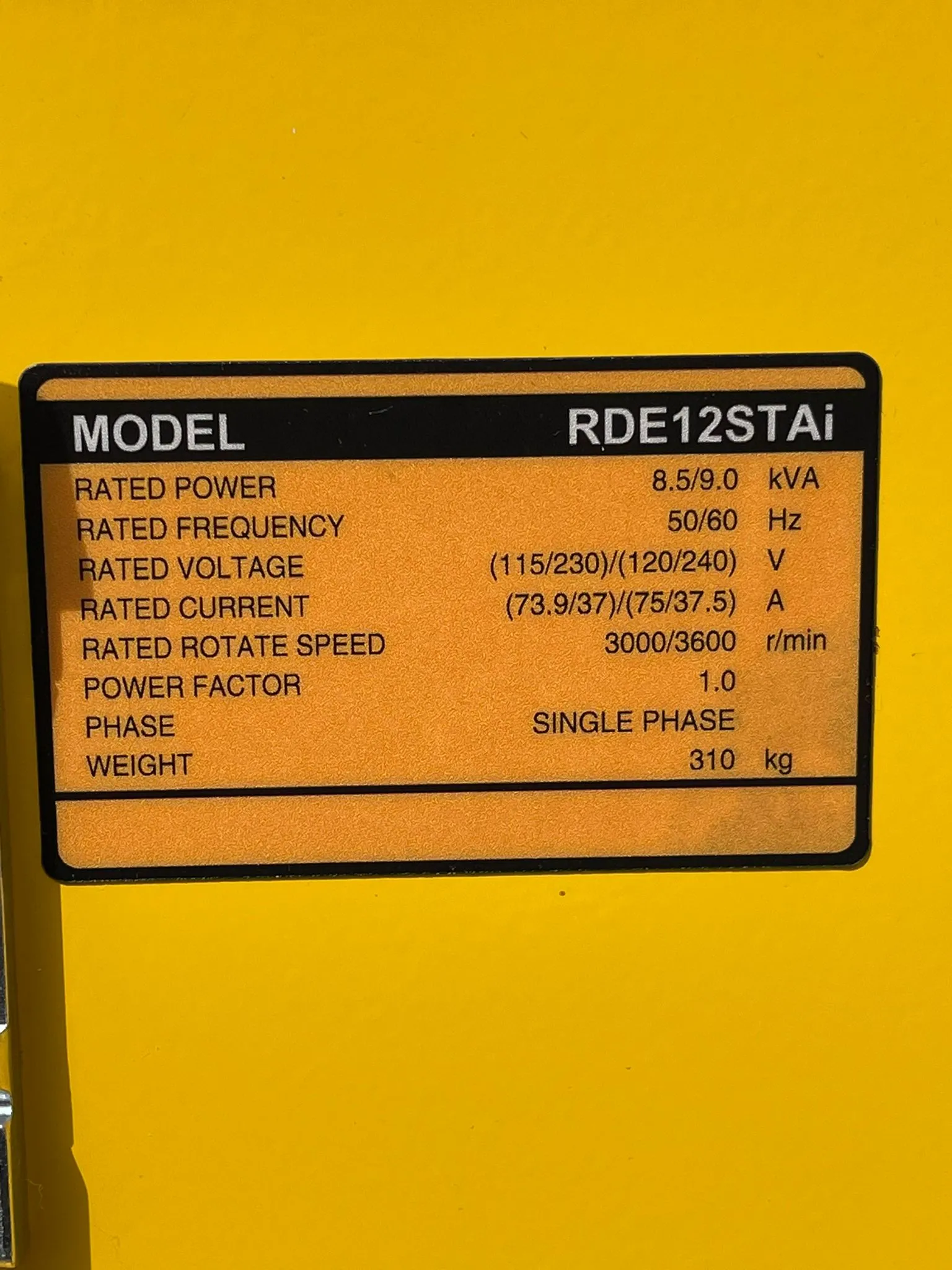

Specifications :
- Model : RDE12STAI
- Rated Frequency : 50 Hz
- Rated Output : 8.5 kVA
- Max. Output : 9.5 kVA
- Rated Voltage : 240 V
- Rated Current : 35.4 A
- Rated Speed : 3000 r/min
- Phase : Single - Phase
- Power Factor : 1.0 (CosØ)
- Excitation Mode : Transistorized Self - Excitation and Constant Voltage
- Working Mode : 12 Hours continuous running
- Structure Mode : STA - Type (Ultra Silent Type)
- Connecting Mode : Transmission Shaft rigid Connection
- Dry Weight : 310 kg
- Fuel Consumption : < 340
- Overall Dimension : 1350 x 650 x 760 mm
- Noise LWA : 72 dBA

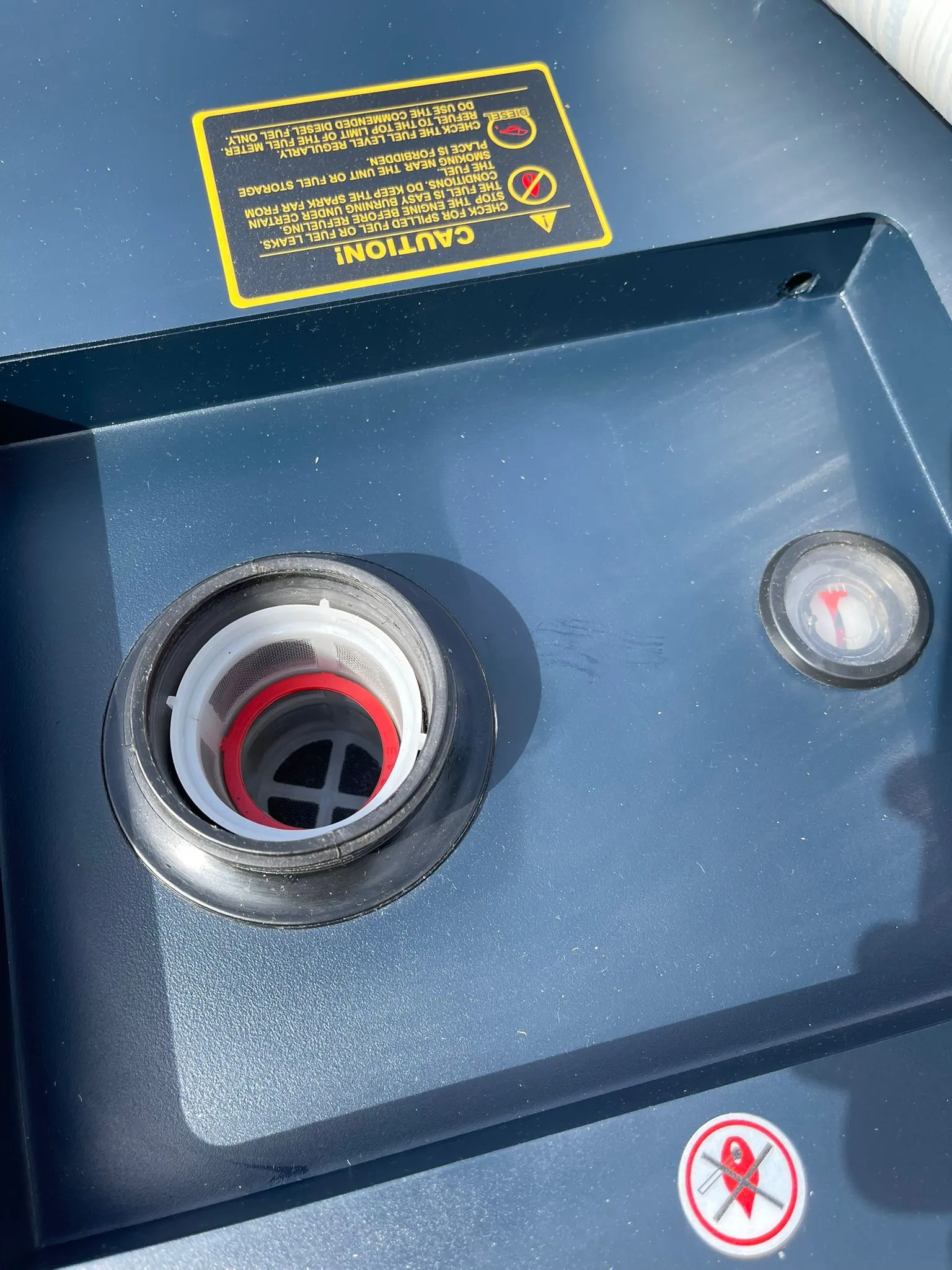

- Fuel Tank Capacity : 26 L

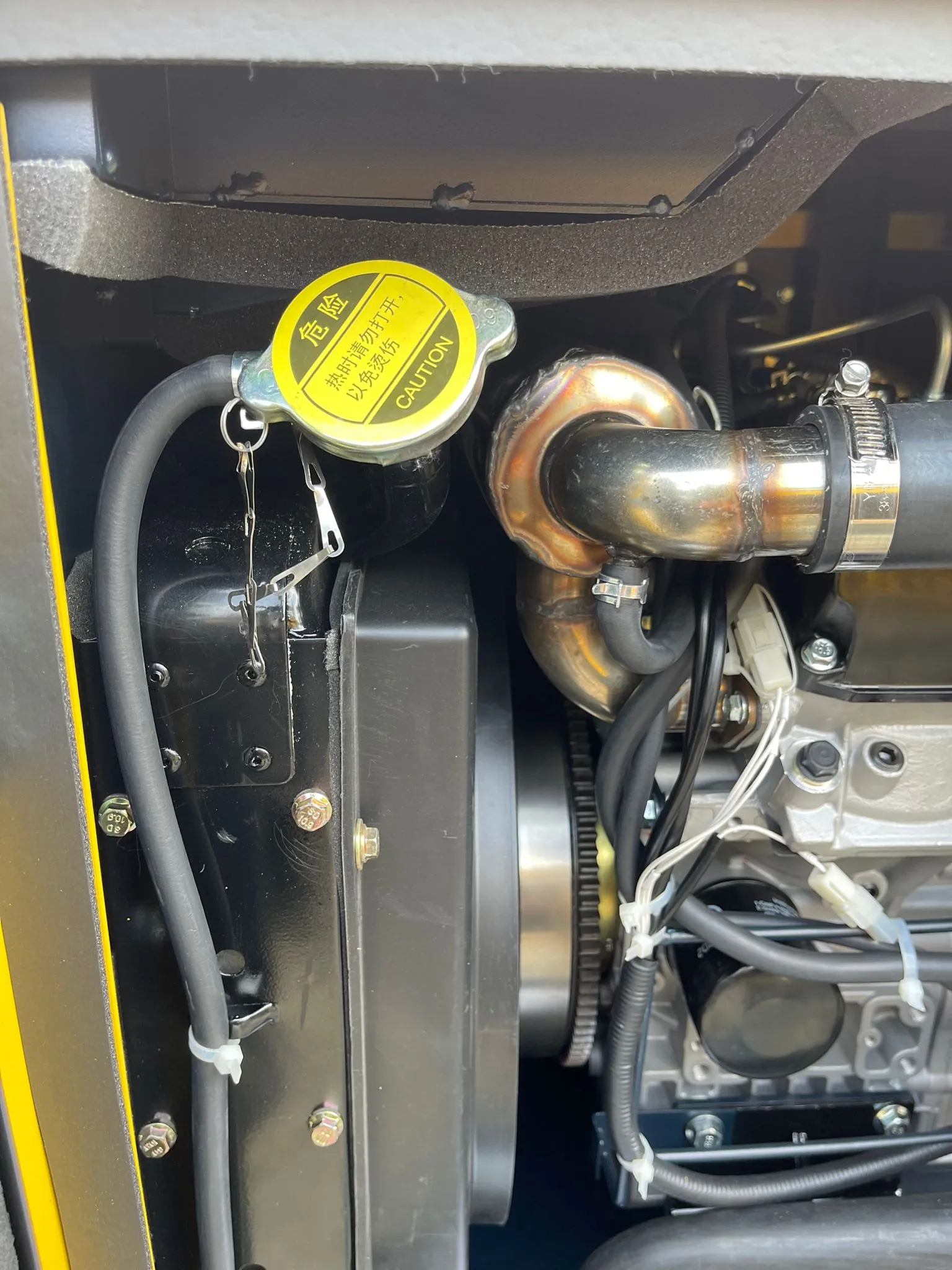

- Engine :
- Model : RD2V80G
- Structure : Double Cylinder , V-Type , Water Cooled , 4 - Stroke , Swirl Type
- Displacement : 794 ML
- Bore X Stroke : 80 x 79 mm
- Fuel Type : Diesel 0#(Summer) , 10#(Winter) , -35#(Chilly Winter)
- Oil Capacity : 2.27 L
- Compression Ratio : 23 : 1
- Rated Power : 12.5 kW / 30000 r/min
- Starting mode : 12V Electrical Starter
- Battery Capacity : 12V - 36Ah
